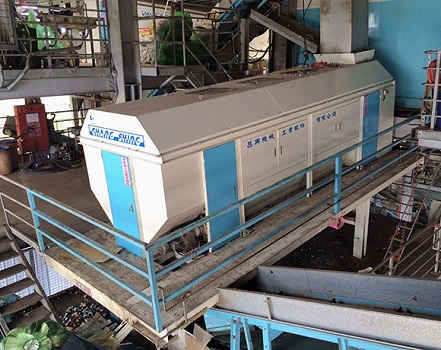

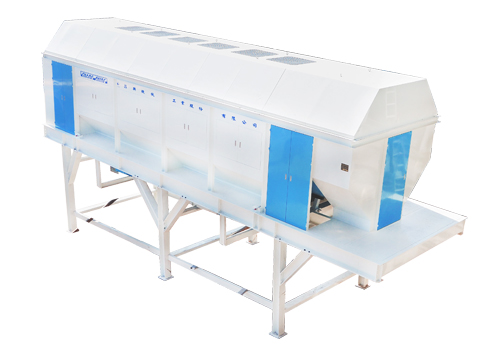

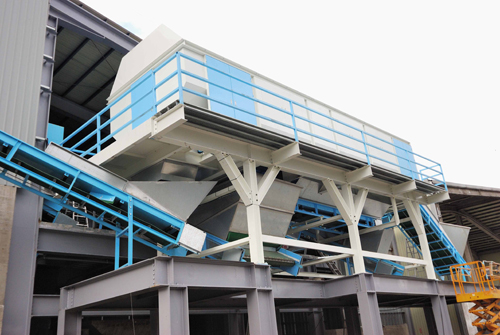

Drum Screen

  • Feature
  • Specification

Feature

Mechanical Purpose:

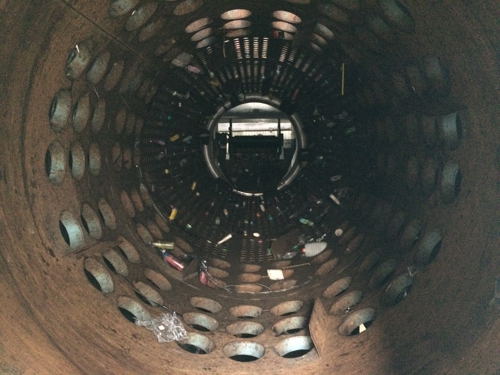

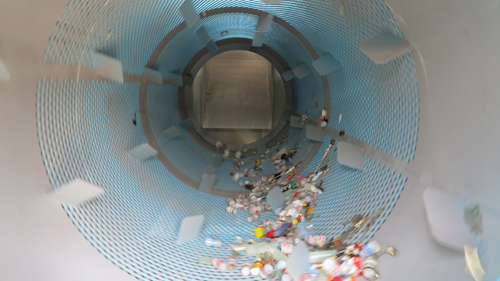

  1. Import the materials to the drum screen, it can classify the materials with different sizes by the holes on drum screen.
  2. Separate the composite materials by rotating of the drum.
Mechanical Property:
  1. Complete sealing of the body, not only to maintain external cleanliness of the body, but also to ensure the safety of staff.
  2. The body includes the import and export.
  3. The sizes and shapes of the hole can be chose by customer to match the production process.
  4. All of the danger zones are protected by safety switches.

Specification

Model SR-1500 X 3550 SR-1500 X 4800 SR-2000 X 5500 SR-2500 X 9600
Length of body
(mm)
3550 6515 7180 12600
Width of body
(mm)
2035 2250 2730 3600
Height of body
(mm)
2560 2200 2615 3550
Diameter
(mm)
1500 1500 2000 2500
Length of drum
(mm)
3550 4800 5500 9600
Width of import
(mm)
800 900 1200 1200
Weight
(Ton)
2.5 7.5 10 21
Inclination 5゚ 5゚ 3゚ 3゚
