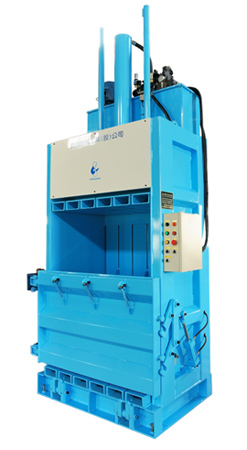

Vertical Baler CH series
- Specification
Specification
| Machine model | CH-37 | CH-50 | CH-75 |
|---|---|---|---|
| Total pressure force (ton) | 37 | 50 | 75 |
| Hydraulic motor | 5HP/3.75KW | 7.5HP-5.6KW | 10HP-7.5KW |
| Max. hydraulic pump pres. | 210KG/CM² | 210KG/CM² | 210KG/CM² |
| Oil-cooling type | water-cooled | water-cooled | water-cooled |
| Packing dimension | 1210 × 1000 × 850 | 1210 × 1000 × 1000 | 1210 × 1000 × 1000 |
| Packing weight | 250 - 300 KG | 300 - 400 KG | 350 - 450 KG |
| Package binding-strip No | 4-5 | 4-5 | 4-5 |
