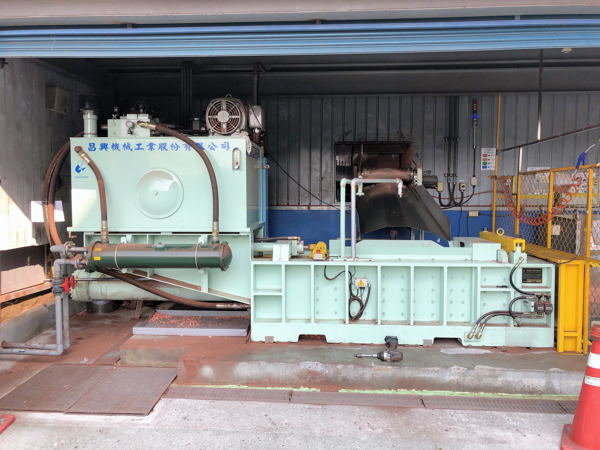

Metal Baler-CI Series
- 特性
- 規格
特型
1. The baler uses one cylinder to compress the metal automatically. It is used to bale the hard metal, the chamber zone was assemble six side replaceable wear plate.
2. This baler can be used with an exclusive storage, to make auto feeding、auto baling and auto discharging.
規格
| Machine Model | CI-117 |
|---|---|
| Total pressure force | 117 Ton |
| Hydraulic motor | 30HP (22.5kw) |
| Max. hydraulic pump pres. | 210Kg/cm2(3000PSI) |
| Size of compressing space (LxWxH) | 1430×600×450 mm |
| Side-forming stroke | |
| Longitudinal-forming stroke | 1930 mm |
| Forming Size (HxWxL) | 450×600×65~100 mm |
| Machine Size (LxWxH) | 4800×1670×2400 mm |
