特型

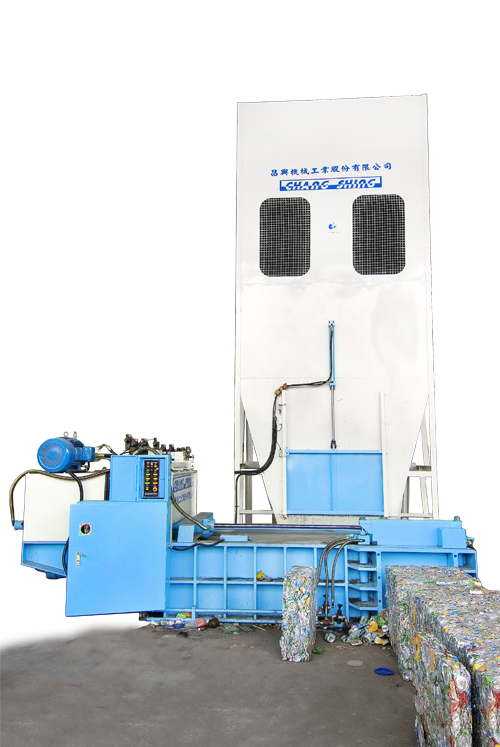

1. 此款打包機是使用雙油壓缸來做打包成形之動作,屬於全自動機型!
2. 適合壓縮硬度較軟之材料,如鐵、鋁罐、鋅及銅等材質。
3. 可選配專屬的儲存槽達到自動進料,自動打包到自動出料,使工作更加輕鬆及彈性。
規格
Machine Model | CG-100 | CG-200 | CG-300 |
---|---|---|---|
Total pressure force | 103Ton (228LB) | 200Ton (442LB) | 300Ton (664LB) |
Hydraulic motor | 15-20HP | 20-25HP | 25-30HP |
Max. hydraulic pump pres. | 210Kg/cm2(3000PSI) | 210Kg/cm2(3000PSI) | 210Kg/cm2(3000PSI) |
Size of compressing space (LxWxH) | 1500×1000×600 mm | 2420×1060×600 mm | 2420×1060×600 mm |
Side-forming stroke | 1080 mm | 2120 mm | 2120 mm |
Longitudinal-forming stroke | 1280 mm | 1363 mm | 1363 mm |
Forming Size (HxWxL) | 600×500×160 mm | 600×500×210 mm | 600×500×300 mm |
Machine Model | CG-410 | CG-560 |
---|---|---|
Total pressure force | 410Ton (907LB) | 560Ton (1240LB) |
Hydraulic motor | 40-50HP | 50-60HP |
Max. hydraulic pump pres. | 210Kg/cm2(3000PSI) | 210Kg/cm2(3000PSI) |
Size of compressing space (LxWxH) | 3030×1515×910 mm | 2420×1060×600 mm |
Side-forming stroke | 2424 mm | 3030 mm |
Longitudinal-forming stroke | 1970 mm | 2270 mm |
Forming Size (HxWxL) | 910×600×400 mm | 1212×910×500 mm |
